Space-saving Compact Wing Turnstile Cost-effective RFID Access Control Sliding Gate for Small Gym and Staff Canteen CE
| Lugar de origen | Cantón, China |
|---|---|
| Nombre de la marca | Goldantell |
| Certificación | CE/ROHS/FCC/IS9001 |
| Número de modelo | GAT-689 |
| Cantidad de orden mínima | 1 pieza |
| Precio | Negociable |
| Detalles de empaquetado | Embalado primero en cartón y luego reforzado con una caja de madera de exportación para embalaje ext |
| Tiempo de entrega | 7 días hábiles después de recibir su pago |
| Condiciones de pago | T/T, Unión Occidental, LC, Paypal |
| Capacidad de la fuente | 1.000 unidades por mes |
Datos del producto
| Tamaño del producto | 1200*200*1000m m | Tamaño del paquete | 1280*370*1070m m |
|---|---|---|---|
| Solicitud | Interior y exterior | Peso neto | 65 kilos |
| Peso bruto | 70kg | Puerto de comunicación | RS485, TCP/IP |
| Compatible | Lector del RFID Reader&Fingerprint, acceso de la moneda, lector de código de QR, sistema de código d | Material | acero inoxidable inoxidable 304 steel/316 |
Descripción de producto
Space-saving Compact Wing Turnstile Cost-effective RFID Access Control Sliding Gate
Product Overview
Compact wing turnstile designed for space-constrained environments like small gyms and staff canteens. CE certified with cost-effective RFID access control and sliding gate functionality.
Key Features
- Integrates with access control systems including facial recognition for staff
- ESD equipment testing capability with three independent devices
- Optional LCD screen for enhanced system requirements
- Single core or dual core structure options for different installation needs
- Higher flow rate with advanced anti-tailgate functions
- Double protection with mechanical and infrared anti-pinch safety features
Technical Specifications
| Item | Details |
|---|---|
| Name | Bridge type flap turnstile |
| Size | 1200mm (L) × 200mm (W) × 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with tent) -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% coagulation free |
| Housing material | Domestic standard 304 # stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Advanced Functions
- Infrared reset function (Optional: 4 pairs or 6 pairs Infrared)
- Infrared induction clamp function
- Bidirectional operation (pedestrian can enter and exit from one pair of turnstiles)
- Real-time trouble self-detect and alarm indication
- Selectable normally open or close mode for passenger flow management
- Humanized timeout passing reset function
- Remote management and control via computer
- Flashing light prompt function for easy problem identification

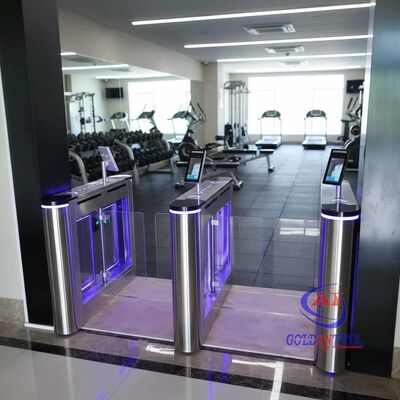

Product Image
Application Areas
- Movie theaters
- Fitness halls
- Country clubs
- Fairgrounds
- Clubs
- Swimming Halls
- Fitness Gyms
- Hotels
- Factories
- Banks
- Hospitals
- Schools
Frequently Asked Questions
How about your package?
Seaworthy wooden case + Foam
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment
How about the lead time?
Regular products need 5-8 working days. Customized products need 9-13 working days
Service & Support
- Friendly and professional customer service available within 16 hours
- Over 10 years ODM/OEM experience with custom product design, logos, and packaging
- Complete system software management solutions to save time and costs
- Special repair service: No product return needed - video instruction by engineers
- Free spare parts replacement for damaged components within 1 year warranty
Company Advantages
- Complete security solutions provider saving time and costs
- High quality with competitive pricing, offering OEM and ODM services
- Professional technical support and excellent after-sales service
- Custom design shapes and logos available
- Fast delivery with safe shipping methods
- One year warranty from delivery date with lifetime technical support
- 24-hour online service with 8-hour response time for inquiries
Access Control Options
- Fingerprint recognition systems
- Face recognition technology
- Card reader systems
- QR code and barcode ticket systems
- Special functions: counter and coin-operation capabilities
- ESD tester system integration
