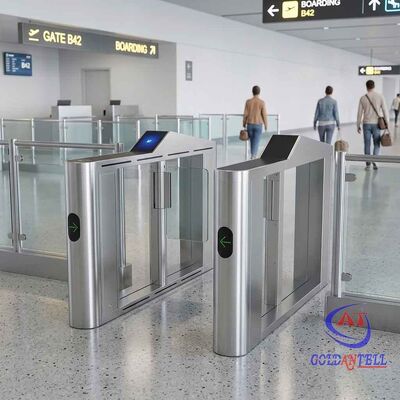

High-Security Brushless Servo Motor Airport E-gate AI Anti-tailgating Speed Gate for Border Control and Customs Security CE

Lugar de origen Cantón, China
Nombre de la marca Goldantell
Certificación CE/ROHS/FCC/IS9001
Número de modelo GAT-aduana
Cantidad de orden mínima 1 Uds.
Precio Negociable
Detalles de empaquetado Embalado primero en cartón y luego reforzado con una caja de madera de exportación para embalaje ext
Tiempo de entrega 7-9 días hábiles después de recibir su pago
Condiciones de pago T/T, Unión Occidental, LC, Paypal
Capacidad de la fuente 1.000 unidades por mes
Datos del producto
Velocidad de paso 35-40 persona/minuto Banco de la cara PC de 20~30 millares
Tamaño L1500*W200*H1000mm Material Acero inoxidable 304
Fuente de alimentación CA 100 V-240 V. Temperatura de funcionamiento -45°C-60°C
tipo completamente automático
Deja un mensaje
Descripción de producto

High-Security Brushless Servo Motor Airport E-gate AI Anti-tailgating Speed Gate for Border Control and Customs Security CE

Description Of Security Access Gates

  • High-Security Brushless Servo Motor: Ensures robust and reliable performance for critical border control applications.
  • AI Anti-tailgating Technology: Prevents unauthorized access by detecting and blocking follow-through attempts.
  • CE Certified: Meets international safety and quality standards, providing peace of mind for security professionals.
  • Tailored for Border Control and Customs: Specifically designed to meet the stringent requirements of airport e-gates and customs security.

Technical Data Of Security Access Gates

Cabinet dimension 1500 (L) x 200 (W) x 1000 (H) mm
Cabinet material 304 stainless steel (316 ss can be custom-made)
Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
Flap opening/closing time 0.6s
Stretching-out flap length 285 mm
Access mode single in/out or Bidirectional
Optimal flow rate 40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down default 10s, can be changed to fit different demands

Features Of Security Access Gates

  1. The passing time is adjustable
  2. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm
  3. The bicycle delay function: prevent the gate from hitting the bicycle
  4. Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people
  5. The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass
  6. Various control functions: external button, remote control, bar code, IC or ID, etc

Functions Of Security Access Gates

  • Smart card reader compatible with a variety of card such as IC and ID card
  • LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked
  • Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control, attendance check or fare collection
  • Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian
  • Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer

Classification Of Security Access Gates

Vertical shape
Bridge shape: this model
Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways)

Application Of Security Access Gates

Exhibition halls
Commercial buildings
Parks
Offices
Stadium
Library
Museums

Service Of Security Access Gates

  • Security solution provider, can help you save time and costs
  • Good quality with competitive price, offer OEM and ODM service
  • Professional technical supports and great after-sales service
  • Custom design shape and logo, for large amount, custom logo available for free
  • Fastest delivery and safe shipping way
  • Warranty: One year Warranty, from the date of delivery, a lifetime technical support
  • Feedback quickly: 24 hours online service and reply your inquiry within 8 hours. We could provide Online supports for you when need supports on testing

Packing Of Security Access Gates

  • Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
  • Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging
  • To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
