Sleek Cylindrical Swing Turnstile ZKTeco Integrated Biometric Face Recognition Slim Column Speed Gate Space-saving VIP Wide Lane

  • Sleek Cylindrical Swing Turnstile ZKTeco Integrated Biometric Face Recognition Slim Column Speed Gate Space-saving VIP Wide Lane
  • Sleek Cylindrical Swing Turnstile ZKTeco Integrated Biometric Face Recognition Slim Column Speed Gate Space-saving VIP Wide Lane
Lugar de origen Cantón, China
Nombre de la marca Goldantell
Certificación CE/ROHS/FCC/IS9001
Número de modelo GAT-620
Cantidad de orden mínima 1 pieza
Precio Negociable
Detalles de empaquetado Embalado primero en cartón y luego reforzado con una caja de madera de exportación para embalaje ext
Tiempo de entrega 7 días hábiles después de recibir su pago
Condiciones de pago T/T, Unión Occidental, L/C
Capacidad de la fuente 2,000pcs por mes
Datos del producto
OEM OEM longitud del brazo, logotipo personalizado, tamaño personalizado TAMAÑO DE POSTE Diámetro 168 mm; altura 1050 mm
Ancho de paso 530mm-830m m Fuente de alimentación CA 100 V-240 V.
Compatible Lector del RFID Reader&Fingerprint, acceso de la moneda, lector de código de QR, sistema de código d tipo Puerta de barrera de oscilación inteligente automática
Puerto de comunicación RS485, TCP/IP Material acero inoxidable inoxidable 304 steel/316
Deja un mensaje
Descripción de producto
Sleek Cylindrical Swing Turnstile with Integrated Biometric Face Recognition
ZKTeco integrated biometric face recognition slim column speed gate featuring space-saving VIP wide lane design for high-traffic environments.
Product Profile
  • Biometric Recognition: Secure access control for enhanced safety
  • Space-Saving Design: Efficiently manages high foot traffic areas
  • Wide Lane Capability: Facilitates smooth passage through crowded spaces
  • Sleek Cylindrical Design: Adds modern aesthetic to any environment
  • High Security: Ensures privacy and protection against unauthorized entry
Key Features
  • Constructed with 304/316 grade stainless steel for superior anti-rust and durability
  • Elegant rectangular box design with brake lever for controlled passage management
  • Integrated machine, electronics, and microprocessor control systems
  • Compatible with multiple identification methods: IC card, ID card, bar code, and fingerprint
  • Ideal for high-security areas including neighborhoods, hotels, subways, and corporate buildings
Technical Specifications
Working Voltage AC220±10%V 50±10%HZ
Dimensions 168mm diameter pillar, 1050mm height
Passage Width 550mm - 1800mm
Swing Arm Rotation 180 degrees
Operation Direction Single or bi-directional (configurable)
Opening/Closing Speed 1 second
Control Methods Push button, RFID card, fingerprint recognition
Throughput Capacity 40 persons/min (open), 25-30 persons/min (closed)
Operational Lifespan 3 million cycles
Environmental Rating Indoor/outdoor (with cover), -10℃～70℃
Drive Mechanism DC 24V brush motor
Standard Security Functions
  • Intrusion Alarm: Triggers when arms are forced illegally and locks mechanism
  • Automatic Locking: Secures gate when receiving no open signal
  • Collision Protection: Arms open automatically upon impact to protect internal mechanisms
  • Timed Reset: Cancels access authority after 10 seconds (adjustable 1-60s)
  • Anti-Pinch System: Mechanical and infrared protection against entrapment
  • System Integration: Compatible with access control, biometric, and ESD systems
  • Status Indicators: Flashing light alerts for maintenance identification
Optional Enhancements
  • Advanced infrared logical judgment (8-10 pairs)
  • Voice prompt and sound/light alarm systems
  • LED people counting display
  • Extended box housing and swing arm lengths
  • Adjustable normally open/closed operation modes
Application Environments
Entertainment Venues Movie theaters, clubs, gyms, swimming pools, fairgrounds
Public Facilities Subways, airports, libraries, museums, stadiums, parks
Commercial Spaces Hotels, offices, banks, hospitals, schools, residential complexes

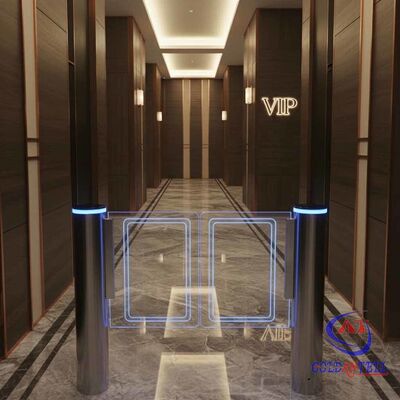

168mm slim cylindrical swing barrier gate in operational environment
Packaging Options
  • With access control system: Sealed wooden case
  • Without access control: Choice of crate or closed wooden box
  • Pair packaging: Two packages required
Manufacturing facility producing swing barrier gates
Customization Options
  • Cabinet appearance tailored to client specifications
  • Stainless steel thickness: 1.2mm-2.0mm
  • Material grades: 304 or 316 stainless steel
  • Surface finishes: Satin, polished, anti-fingerprint, frosted, electroplated, or baked
Competitive Advantages
  • 24-month quality guarantee
  • Custom designs and logos available
  • Fast production and delivery
  • Engineering support team
  • Distributor discounts
  • Export-standard packaging
  • CE and ROSH certified
