RFID Stainless Steel Access Control Drop Arm Gate Tourniquet Security Gate Speed Gate Rotating 3 Arm Revolving Bus Station

  • RFID Stainless Steel Access Control Drop Arm Gate Tourniquet Security Gate Speed Gate Rotating 3 Arm Revolving Bus Station
  • RFID Stainless Steel Access Control Drop Arm Gate Tourniquet Security Gate Speed Gate Rotating 3 Arm Revolving Bus Station
Lugar de origen Cantón, China
Nombre de la marca Goldantell
Certificación CE certificate
Número de modelo GAT-330
Cantidad de orden mínima 1 pieza
Precio Negociable
Detalles de empaquetado Embalado primero en cartón y luego reforzado con una caja de madera de exportación para embalaje ext
Tiempo de entrega 7-9 días hábiles después de recibir su pago
Condiciones de pago T/T, Unión Occidental, LC, Paypal
Capacidad de la fuente 2,000pcs por mes
Datos del producto
Dimensión L1200xW280xH1000mm Velocidad de tránsito 25~30 personas/minuto
Fuente de alimentación 110~240 V (CA) Ancho de paso 600 mm
voltaje de trabajo AC220±10%V 50±10%HZ Anchura del brazo 510 mm
Fuerza de Apoyo 60kg Horario de apertura 0,2 segundos
Deja un mensaje
Descripción de producto
RFID Stainless Steel Access Control Drop Arm Gate Tourniquet Security Gate Speed Gate Rotating 3 Arm Revolving Bus Station
Quick Description
  • Tripod turnstile gate are compact and cost-effective entrance solutions
  • The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable
  • Ideal for indoor and outdoor settings
  • In case of emergency, the tripod turnstile gate will drop down when power off
  • Classification: full automatic, semi-automatic (most widely used), and manual
Technical Parameters
Size 1200mm (L) * 280mm (W) * 1000mm (H)
Working voltage AC220±10%V 50±10%HZ
Working movement DC24V solenoid valve
Arm width 510 mm
Support force of arm 60kg
Passage width ≤600 mm
Time of opening 0.2 second
Pass speed 30 persons/min
Emergency feature When power off, arm opens automatically
Normal running life 3 million cycles
LED light Direction arrow
Direction Single or bi-directional (optional)
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Relative humidity ≤90% coagulation free
Communication interface Standard RS485 interface, distance ≤1200m
Housing material Domestic standard 304 # stainless steel
Input interface +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Applications
  • Public Places: lobby entry, Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadium, Museums, Apartments, Residence Area, Offices, Commercial buildings
  • Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym
  • Business Organizations: Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance
Features & Functions
  • Low noise, no mechanical impact
  • Single directional or Bi-directional
  • High operation with quick response
  • Excellent design, with high quality
  • Robust, rigid, anti-rust and durable
  • Smoothly working system
  • Self-test function
  • Added functions:
    • Counting function available (counter)
    • Information display option (LCD display screen)
    • Audible sound prompt
    • Invalid entering alarm
    • Auto-lift-arm function (full automatically type)
Product Image

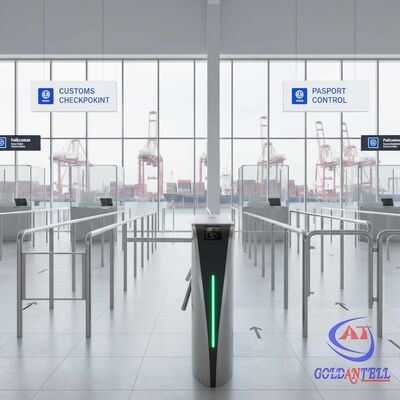

RFID Stainless Steel Access Control Drop Arm Gate Tourniquet Security Gate Speed Gate Rotating 3 Arm Revolving Bus Station 0
Frequently Asked Questions
How long is your warranty period?
One-year guarantee & Lifetime technology support.
How about the payment method?
If order amount ≤5000USD, 100%T/T in advance. If the order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
Which payment terms are you accept?
T/T, Western Union, LC, PayPal, etc.
Can we visit your factory?
Yes. Any time will be welcome.
How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.
Control Options
  • Access control systems: fingerprint/face recognition/card reader/QR code/barcode ticket system
  • Support special functions: counter, coin-operation
  • ESD tester system and function
Why Choose Our Product
  • More than 15 years powerful ODM/OEM ability, could make product shape design, custom logo, custom package
  • Friendly and professional customer service people help you in 16 hours
  • We can provide not only product, but also system software management. Save your time and cost
  • Special service: For repairing, no need to return product, only need video instruction. If spare parts damaged within 1 year, we send replacements at no cost
Internal Details
RFID Stainless Steel Access Control Drop Arm Gate Tourniquet Security Gate Speed Gate Rotating 3 Arm Revolving Bus Station 1
