Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply

  • Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply
  • Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply
  • Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply
  • Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply
  • Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply
  • Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply
Lugar de origen PORCELANA
Nombre de la marca Goldantell/OEM
Número de modelo Serie GAT-320
Cantidad de orden mínima 1
Precio $762

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es?:0086 18588475571

Veloz: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Ancho de pasaje 550mm-600m m Velocidad de aprobación 30-40 personas/min
Fuente de alimentación 220~240/110 V (CA) Consumo de energía máxima 60W
Frecuencia 50~60 herzios Protección de IP IP54
Temperatura de trabajo -15 ~ 75 ° C Espesor del material 1.5 mm
Diámetro de poste 280 mm Altura del poste 1200 mm
Longitud del brazo 500-900 mm Peso de embalaje 70 kg
Motor de conducción Motor de corriente continua con cepillado de 24 V Intervalo de brazo 1-2S
Humedad de trabajo Entre el 5 y el 95%
Resaltar

550mm-600mm Passage Width Revolving Tripod Turnstile

,

30-40 Persons/Min Pass Speed Manual Barrier Gate

,

220~240/110 V(AC) Power Supply Security Turnstile Gate
Deja un mensaje
Descripción de producto
Revolving Tripod Turnstile - Manual Barrier Gate for Intelligent Access Control

Our high-quality revolving tripod turnstile and manual barrier gate provide secure, intelligent access control solutions for various facilities.

Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply 0
Technical Specifications
Parameter Value
Pole diameter 280mm
Pole height 1200mm/3.44 feet
Arm length 500 to 900mm (default 500mm)
Packaging weight 70kg
Material 304 stainless steel, 2.0mm thickness, brushed or polished finish
Power supply 220/110 V AC, 50Hz
Driving motor Brushed DC motor (24V)
Input interface Dry contact signal or 12V level signal or 12V pulse signal (pulse width ≥100ms)
Passage speed 40 persons/minute (open); 30 persons/minute (closed)
Working temperature -15 to 75°C/-22 to 140°F
Working humidity 5 to 95%
Communication interface RS485
Product Features
  • Self-diagnostic function for problem detection
  • Multiple operation modes including bi-directional card reading
  • Automatic arm opening during power failure
  • Adjustable closing delay (1-60 seconds)
  • Auto-reposition function with configurable timeout
  • Alarm system for unauthorized access attempts
  • RS485 interface for remote control
  • Anti-rush mechanism to prevent forced entry
  • Dual anti-pinch protection (photocell and mechanical)
  • Standard electrical interfaces for various reader integration
  • Passenger counting with LED display
  • Direction indicator for user guidance
  • Optional memory function for card reading
  • Population control capability via software
  • Quiet operation with stable performance
Product Images

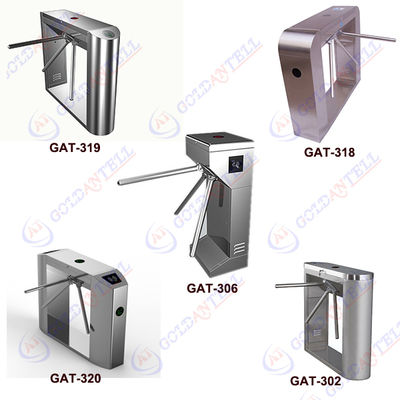

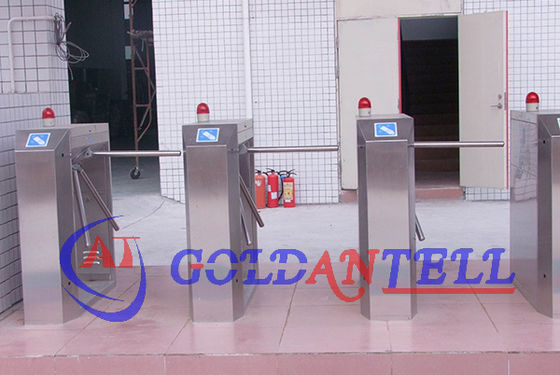

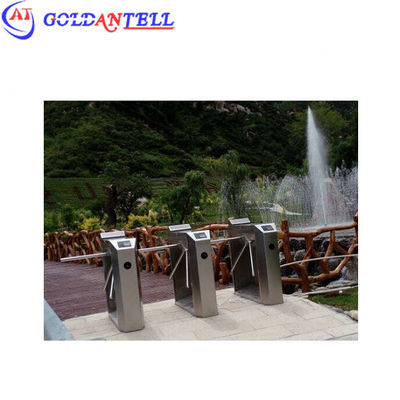

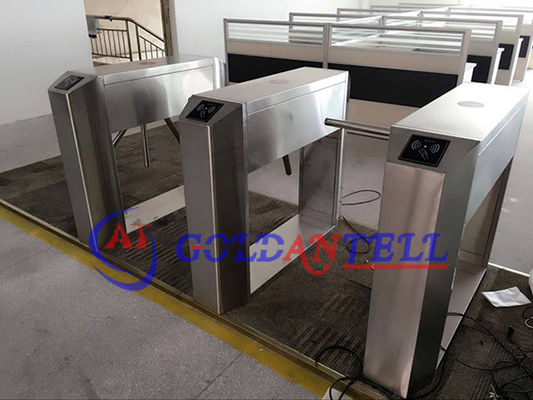

Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply 1 Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply 2 Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply 3
About Goldantell Technologies

Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer and exporter of intelligent turnstile and parking management systems with over 8 years of industry experience.

Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and complete security access control systems. We have successfully exported to more than 50 countries worldwide.

Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply 4
Certifications
Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply 5
Global Reach

We have successfully supplied turnstiles to over 50 countries including:

United States, Canada, Brazil, Chile, Australia, New Zealand, Germany, Netherlands, Switzerland, Sweden, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Egypt, and many more.
Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply 6
Frequently Asked Questions
Can you install RFID card reader on the turnstile?
Yes, we can install RFID card reader systems, fingerprint readers, token systems, ESD systems, and other access control solutions.
What is your warranty and after-sales service?
We provide a 12-month quality guarantee with English-speaking support staff for all after-sales services.
What is your production lead time?

Standard items:

  • 10-50 sets: 5 working days
  • 50-100 sets: 7-10 working days
  • 200-500 sets: 10-15 working days

Custom designs require 3-10 additional working days.

What payment methods do you accept?
We accept TT, Western Union, L/C, and participate in Trade Assurance for order security.
What packaging options are available?
Standard carton packaging with optional wooden crate or closed wooden package.
Do you offer OEM services?
Yes, we provide custom turnstile designs, logo printing, and retail box customization.
Delivery Information

Shipping options:

  • Sea freight: 15-60 days (varies by destination)
  • Express (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
  • Air cargo: 2-7 days
Our Services
  • 24-hour response time for all inquiries
  • English-speaking sales and support team
  • Comprehensive OEM services including custom designs
  • Expert engineering support for installation and operation
Contact Us

For factory-direct pricing and high-quality turnstile solutions, please contact our sales team.

Revolving Tripod Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and 220~240/110 V(AC) Power Supply 7
