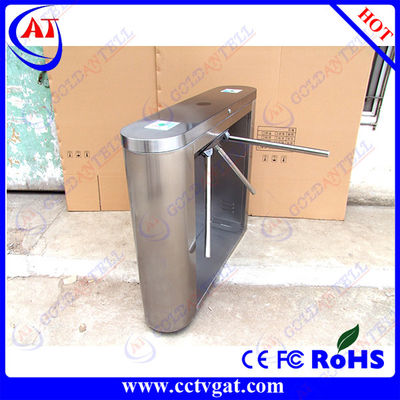

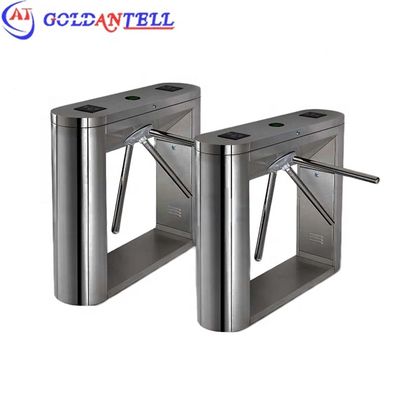

Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection

  • Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
Lugar de origen Guangdong, China
Nombre de la marca Goldantell/OEM
Número de modelo Serie GAT-302
Cantidad de orden mínima 1
Precio $825

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es?:0086 18588475571

Veloz: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Ancho de pasaje 550mm-600m m Velocidad de aprobación 30-40 personas/min
Fuente de alimentación 100~240 V (CA) Consumo de energía máxima 60W
Frecuencia 50~60 herzios Protección de IP IP54
Temperatura de trabajo -15 ~ 75 ° C Dimensiones sin barras 1200x280x1000mm
Peso neto 65 kg Potencia del motor 140W/24V
Velocidad del motor 1600r/min Distancia de comunicación ≤ 1 200 m
Espesor del material ≥1,5 mm Vida útil 5-8 millones de ciclos
Humedad relativa ≤ 95%, sin condensación
Resaltar

550mm-600mm Passage Width Automatic Barrier Gate

,

30-40 Persons/Min Pass Speed Security Turnstile Gate

,

IP54 Protection Electric Retractable Gate
Deja un mensaje
Descripción de producto
New Styles Supermarket Entrance Automatic Barrier Electric Retractable Swing Open Security Control Gate
Premium automatic barrier electric retractable gate with advanced security control for supermarkets, parks, and parking lots.
Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 0 Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 1
Technical Specifications
Parameter Value
Power AC 220 ±10% V, 50HZ
Operating Temperature -15°C to 75°C
Relative Humidity ≤95%, No Condensation
Access Width ≤600mm
Passing Speed 30-40 persons/min (IC Card)
Motor 140W/24V
Motor Operation Speed 1600R/Min
Communication Distance ≤1200M
Material SUS304, thickness ≥1.5mm
Running Life 5-8 Million cycles
Protection Grade IP54
Key Features
  • Self-diagnosis and alarm function for easy maintenance
  • Programmable operation via control panel
  • Safety stop mechanism when obstruction detected
  • Audible and visual alarms for security breaches
  • Automatic locking system until opening signal received
  • Adjustable arm synchronization
  • Automatic reset function with adjustable timing
  • Power failure protection - opens when power off, closes when power on
  • Compatible with multiple access control systems (IC/ID cards, fingerprint, facial recognition, etc.)
  • Available in unidirectional or bidirectional configurations
Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 2 Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 3
Customization Options
  • Optional counter system
  • Housing length options: 1.2m, 1.4m, or 1.6m

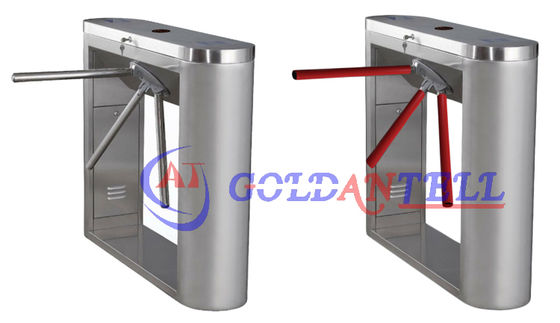

  • Flap arm materials: acrylic glass, resin, PVC
  • Flap arm colors: red, blue, yellow, colorless
About Shenzhen Goldantell Technologies
With over 8 years of experience, we are a leading manufacturer of intelligent turnstiles and parking management systems, exporting to more than 50 countries worldwide.
Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 4 Modern Automatic Barrier Gate with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 5
Frequently Asked Questions
Can you install RFID card reader on the turnstile?
Yes, we can install RFID card reader systems as well as fingerprint readers, token systems, ESD systems, and other access control solutions.
What is your warranty and after-sales service?
We provide 12-month quality guarantee with English-speaking support staff for all after-sales service needs.
What are your lead times?
Standard items: 5-15 working days depending on quantity. Custom items require 3-10 additional working days.
Trade Information
  • Payment Methods: T/T, LC, Western Union, Escrow, PayPal
  • Packaging: Carton box + wooden case/crate
  • Shipping Options: Express (3-5 days), Air Cargo (2-7 days), Sea Freight (15-60 days)
  • OEM Services Available: Custom designs, logo printing, packaging
Goldantell turnstiles - factory direct pricing, premium quality, contact us today for your security gate needs!
