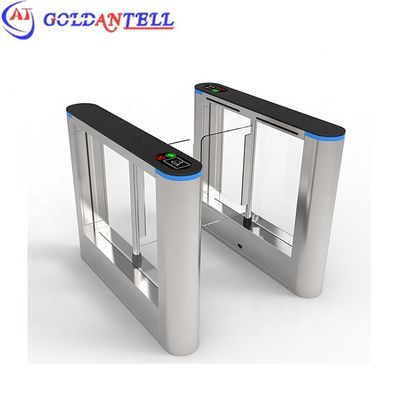

Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty

  • Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty
Lugar de origen Guangdong, China
Nombre de la marca Goldantell/OEM
Número de modelo GAT-aduana
Cantidad de orden mínima 2
Precio $884

Éntreme en contacto con gratis las muestras y los vales.

¿Qué es?:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Tipo de visualización pantalla de pantalla facial LCD ancho de carril 55-130cm
Dimensión 1400*200*1000 mm (L*W*H) Fuente de alimentación AC 110 ~ 240V 10% 50/60Hz
Interfaz de comunicación RS485, TCP/IP Material de alojamiento 304 acero inoxidable
Hora de la abertura/de límite 0.2s Material del brazo Acrílico de 10 mm, vidrio templado o acero
Modo de acceso individual en/out o bidireccional Ancho de paso 900 mm
Mecanismo Motor cepillado de CC+embrague o servomotor Sensor infrarrojo 6 ~ 10 pares
Cantidad de flujo óptima 40 personas/min (abiertos), 35 personas/min (cerrados) Tiempo del reset predeterminado 10s
Humedad de trabajo el 30%~95%
Resaltar

Intelligent Full Automatic Security Turnstile Gate

,

QR Code Reader Security Turnstile Gate

,

1-2 Year Warranty Security Turnstile Gate
Deja un mensaje
Descripción de producto
Intelligent Full Automatic QR Code Reader Barrier Swing Gate
ShenZhen face scanner pedestrian channel barrier with advanced access control features
Description Of Barrier Swing Gate
  • Application: Outdoor or indoor installation
  • LED indicator light: Green and red lights indicate passing status
  • Safety glass panel: Slides open horizontally for clear passage
  • Emergency feature: Gate auto-opens during power failure to meet fire safety requirements
  • Custom security: Available with high visibility glass panels to prevent climbing attempts
  • System integration: Standardized electrical interface compatible with various reading devices
Technical Specifications
1 Cabinet dimension 1400 (L) x 200 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material 10mm Acrylic, tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough width 900mm (customizable)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after breakdown Default 10s (adjustable)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Key Features
  • Adjustable passing time settings
  • Anti-tailgating detection with alarm system
  • Bicycle delay function for safety
  • Multiple control modes including scheduled open periods
  • Flexible operation modes (two-way, one-way, or free pass)
  • Compatible with various control methods (external button, remote, barcode, IC/ID cards)
Product Variations
  • Vertical shape
  • Bridge shape (this model)
  • Pillar shape (tube type)
  • Single motor (for single/multiple passageways)
  • Double motors (for multiple passageways)
Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty 0
Ideal Installation Sites
Exhibition halls, Commercial buildings, Parks, Offices, Stadiums, Libraries, Museums
Our Services
  • Complete security solutions to save time and costs
  • Competitive pricing with OEM/ODM services available
  • Professional technical support and after-sales service
  • Custom designs and logos (free for bulk orders)
  • Fast delivery with secure shipping methods
Frequently Asked Questions
  • Q: Can I get a system without software for ESD testing?
    A: Yes, we offer multiple options available in our catalog.
  • Q: What language versions are available?
    A: English and Chinese versions supported.
  • Q: Are manuals and installation guides provided?
    A: Yes, English manuals are available.
  • Q: Can I request custom modifications?
    A: Yes, we specialize in OEM/ODM services.
  • Q: What are the payment terms?
    A: 100% payment before shipment with product photos/videos provided.
  • Q: What delivery options are available?
    A: EXW, FOB, CFR, CIF, DDU.
About Shenzhen Goldantell Technology Co.,Ltd
Established in 2007, we are a leading provider of intelligent turnstiles, access control systems, and parking management solutions. We specialize in customized products and OEM services, with new designs developed annually.
Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty 1 Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty 2
Our Advantages
  • Professional OEM/ODM design services
  • CE certified with European government project experience
  • Experienced sales team with 4+ years in turnstile industry
  • Competitive pricing with high quality standards
  • Custom solutions for specific client requirements
Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty 3
Customer Service Commitment
  • Pre-sale: Detailed product consultation and requirements analysis
  • Production: Regular updates with photos and testing videos
  • After-sale: Comprehensive manuals and installation guides
  • Customization: 10+ years OEM/ODM experience for tailored solutions
  • Support: 16-hour response window for all inquiries
Contact Information
Contact Person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin
Skype: goldantell02
Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty 4
