CE Certification Stainless Gate Bidirectional Security Door Flap Barrier Turnstile Gate with ESD Tester
GAT-ESD305 Tester System Specification
| Item |
Specification |
| Instrument Dimensions |
8 inch LCD monitor |
| Pedal Size |
(W) 400mm x (L) 420mm x (H) 20mm |
| Operating Voltage |
Input AC220V output DC12V |
| Working Hours |
Unlimited |
| Environmental Conditions |
Humidity: 0%~90%, Temperature: 5°C~40°C |
| Data Storage |
Automatically stores records and ESD test data (except client mode), recording information up to 100,000 or more |
| Test Range and Accuracy |
Left shoe setting: 0.01-1000MΩ, Accuracy ±5%
Right shoe setting: 0.01-1000MΩ, Accuracy ±5%
Wrist-strap setting: 0.1-35MΩ, Accuracy ±5%
|
GAT-ESD305 Tester System Advantages
- ESD test range is significantly higher than regular items

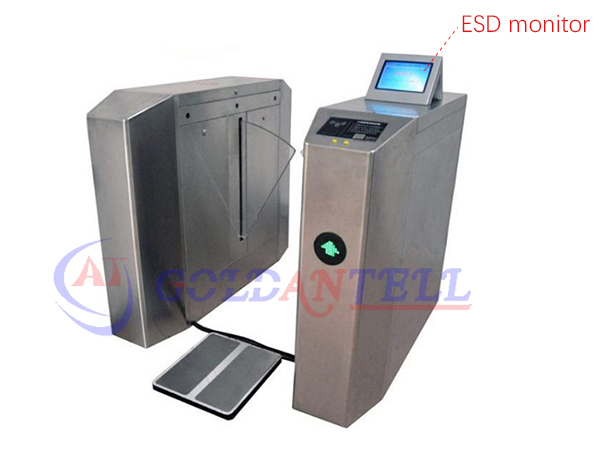

- Features a larger 8-inch ESD monitor screen compared to standard 4-inch displays
- Supports IC or ID card access control in turnstile system

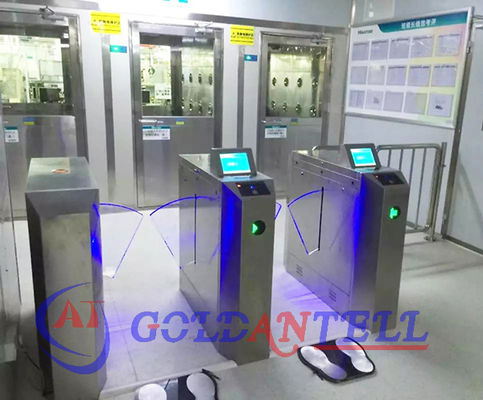

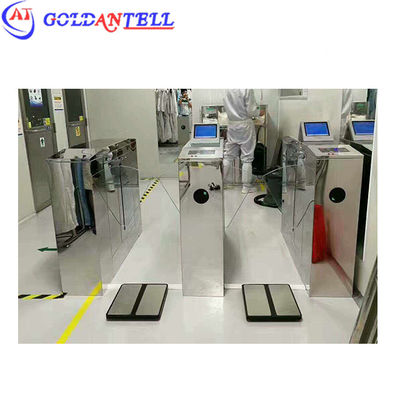

Application Picture
Specification For Turnstile Flap Gate
| Feature |
Specification |
| Power Consumption |
AC220V, 50Hz/AC110V, 60Hz (optional) |
| Housing Size |
1200*300*1000mm |
| Housing Material |
1.5-2mm, 304# stainless steel, corrosion resistant |
| Net Weight |
150KG |
| Drive Motor |
DC brushless motor |
| Channel Width |
500-600mm |
| Pass Speed |
30-40 persons/min |
| IP Protection |
IP54 |
| Input Signal Options |
DC12V/dry/contact/RS485/RS232/Remote |
| Fail-Safe Operation |
Railing-off against power off |
| Working Temperature |
-15°C to 75°C |
| Working Environments |
Indoor, outdoor |
| Relative Humidity |
≤95% (non-condensing) |
| MCBF |
2,500,000 cycles |

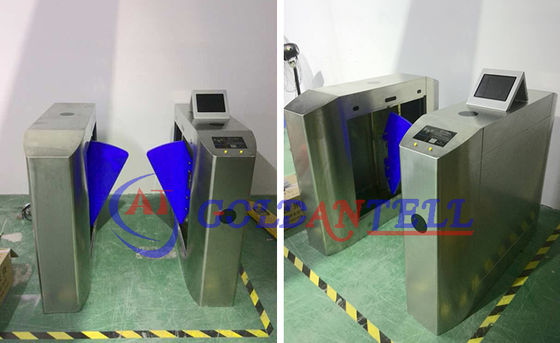

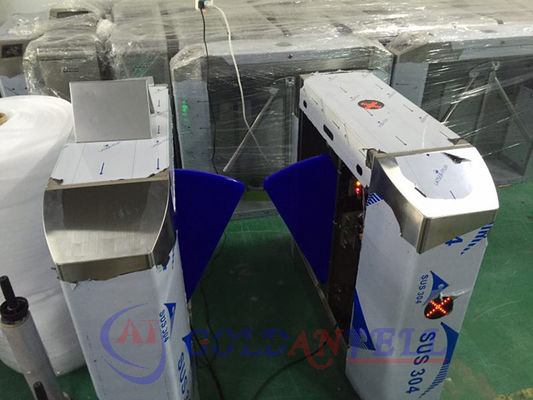

Real Photos
Functions and Features
- Smart card reader compatible with various cards including IC and ID cards
- Expandable to automatic identification systems for access control, pedestrian flow control, attendance check, or fare collection
- Equipped with international standard electrical interfaces for easy integration with other R/W devices
- Remote supervision computer control and management capability
- Infrared photocell system for unauthorized entry detection and anti-tailgating protection
- LED gate direction indicator (green arrow for entry free, red cross for passage locked)
- Dual input signal operation (access controller, button, or other equipment)
- Audible sound prompt and information display function
- Automatic flap opening during power interruption with N/C mode recovery after power restoration (optional)
- Counting function for multiple passes (N≤16) with single card swipe (optional)
- Reverse passing alarm function (optional)
Project of Flap Barrier Gate
Company Information
Who are we?
Shenzhen Goldantell Technology Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile, access control system and parking management products, established in 2007. We offer customized products and OEM services with new designs introduced annually.
Where are our customers?
Our turnstiles have been exported to over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, Germany, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar.
Our Services & Strength
- Professional design team for OEM and ODM services
- CE approved with successful European government project experience
- Experienced sales team with over 4 years in turnstile trade
- Competitive pricing with high quality standards and excellent after-sales service
- Custom product development and complete access control system solutions
FAQ
Can you install RFID card reader on the turnstile?
Yes, we can install RFID card reader systems as well as fingerprint reader systems, token systems, ESD systems, etc.
How about the guarantee and after sale service?
We provide 12-month quality guarantee with well-trained, English-speaking sales and after-sales service team.
How long is the lead time?
Standard items:
10-50 sets: 5 working days
50-100 sets: 7-10 working days
200-500 sets: 10-15 working days
Custom items require 3-10 additional working days
How about the payment terms?
We accept TT, Western Union, L/C, and participate in trade assurance programs for order security.
How do you ship products and how long does it take?
Samples: 3-5 days by air or express
Bulk orders: 7-60 days by sea depending on destination
What is the packaging for the turnstile?
Carton package inside with option of crate package or closed wooden package outside.
Can you do OEM service?
We offer comprehensive OEM services including custom turnstile design, logo printing, and retail box customization.
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Details
- Sea freight: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Our Services
- 24-hour response to inquiries
- English-speaking sales and after-sales team
- Comprehensive OEM services including logo printing and packaging customization
- Experienced engineering support
Our Pre-sale & After-sale Service
- Pre-sale: Detailed product consultation and requirement analysis
- On-purchase: Production updates with photos and testing videos before shipment
- After-sale: Installation guides, manuals, and instructional videos
- OEM/ODM: 10+ years experience in custom solutions
- Professional support: 16-hour response time
Goldantell turnstiles - factory price, high quality, welcome your inquiry!
