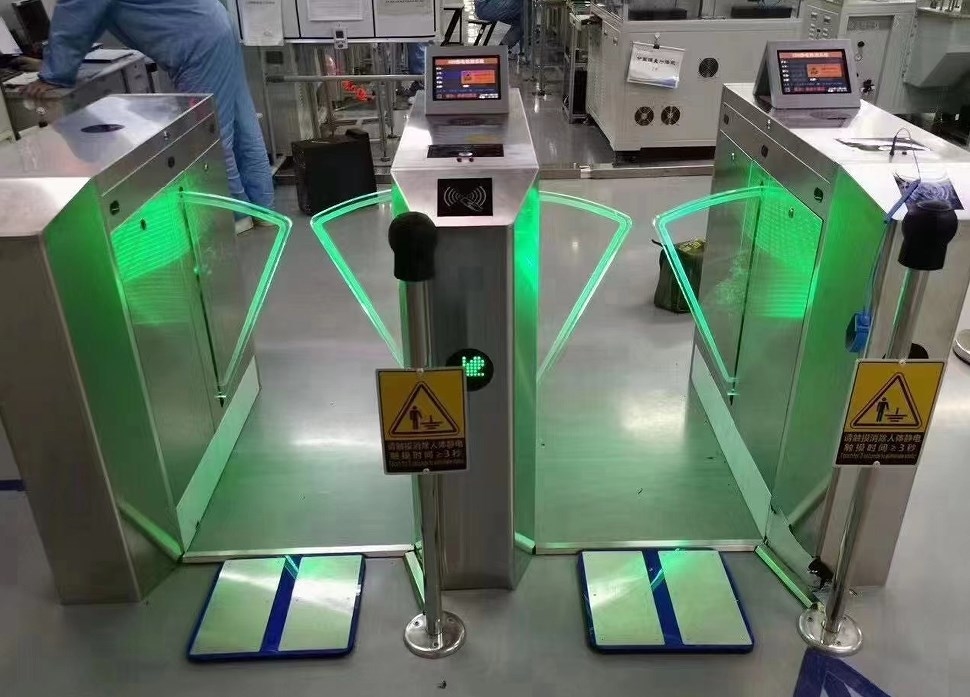

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

CHINA SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certificaciones
CHINA SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certificaciones
Productos de buena calidad, precios competitivos y servicios de alta calidad.

—— Alex Wong en las Filipinas

¡Goldantell es un proveedor del oro, me ahorra mucho tiempo para hacer la compra! ¡Y siempre dando la sugerencia profesional, ayúdeme mucho en negocio!

—— Asif Khan en Bahréin

Los torniquetes de reconocimiento facial impresionaron a los inquilinos, sincronizaron con las tarjetas de acceso sin problemas, los ingenieros incluso trabajaron durante Eid.

—— Ahmed Al-Farsi en los EAU

Puertas de precisión sincronizadas con robots de montaje puertas de torniquete de especificaciones alemanas, velocidad china cero reclamaciones de garantía en 18 meses

—— Klara Müller en alemán

¡Hola, Charlene, hemos recibido el cargo! ¡Nuestro ingeniero probó las barreras, ellos todo el funcionamiento muy bien! ¡Ahora, quiero hacer una nueva orden!

—— Michael Fusco en los EE.UU.

Estoy en línea para chatear ahora

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

Ampliación de imagen :  8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband

Datos del producto:
Lugar de origen: Guangdong, China
Nombre de la marca: Goldantell
Certificación: CE certificate
Model Number: GAT-303
Pago y Envío Términos:
Cantidad de orden mínima: 1 pieza
Precio: Negociable
Detalles de empaquetado: Embalado en cartón en primer lugar, y después reforzado con el caso de madera de la exportación para
Tiempo de entrega: 7 días laborables recibieron después su pago
Condiciones de pago: T/T, Western Union, LC, Paypal
Capacidad de la fuente: 2,000pcs por mes
Descripción detallada del producto
DIMENSIÓN: L1200/1400xAn280xAl1000mm El material: Acero inoxidable 304, (o 316 de encargo)
Velocidad del tránsito: 25~30 personas/minuto Producción por encargo: logotipo personalizado
Fuente de alimentación: 110~240 V (CA) Dirección: unidireccional, BI-dirección ajustable
Ancho del pasaje: <600mm> Working environment: Indoor / Outdoor ( Shelter),indoor
Garantización: 12 Months Usage: Factory,Office,Hotel,Library,Metro Station,ect.

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband



Introduction Of ESD Turnstile Gate System

1. Excetp esd system,the gate can be integrated with any kind of access controller system (covering: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).

2. Use anti-passback movement, when people turn the three arms up to around 60 degrees then arms can no longer turn back.

3. Use hydraulic shock absorb, can effectively control the speed of the turntable, and no sound when rotation. reduce the vibration as well.

4. Type: full automatic ( arms auto on work status when power on); Semi-automatic; manual.

5. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.

6. Turnstile system Can equip higher configuration for areas with high traffic, such as airport/railway/metro/bus/park entrance or exit.



Feature & Function Of ESD Turnstile Gate System

-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)



Special Function Of ESD Turnstile Gate System

1. counter: which records the pass times.

2. Coin or Token collector;

3. Card collector.



Technology parameter Of ESD Turnstile Gate System
Optimal flow rate 30 persons/min (open), 25-30 persons/min (closed)
Cabinet dimension 1200(L)* 280(W)* 1000(H)MM
Open type push button/ access control
Passing direction single in/out or Bidirectional
Working temperature -15°C +75°C
communication with computer standard RS485, TCP/IP
Reset time after break down default 10s,can be changed to fit different demands



Display Of ESD Turnstile Gate System

Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.



Design Of ESD Turnstile Gate System

8 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband 08 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband 18 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband 28 Inch LCD Screen ESD Turnstile Gate System With Foot Pedal and Wristband 3

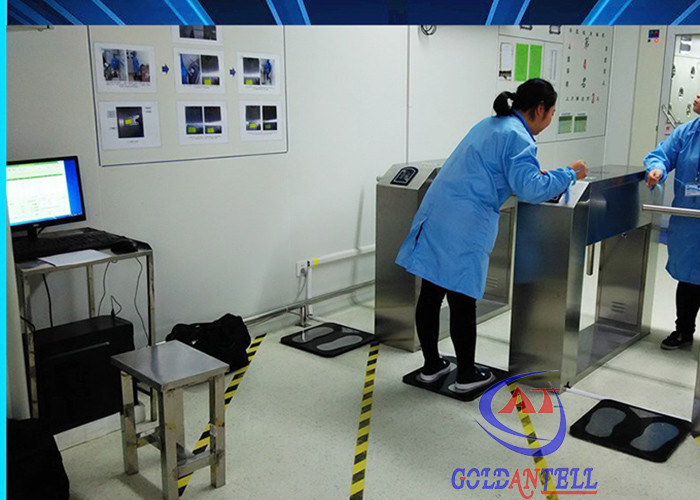

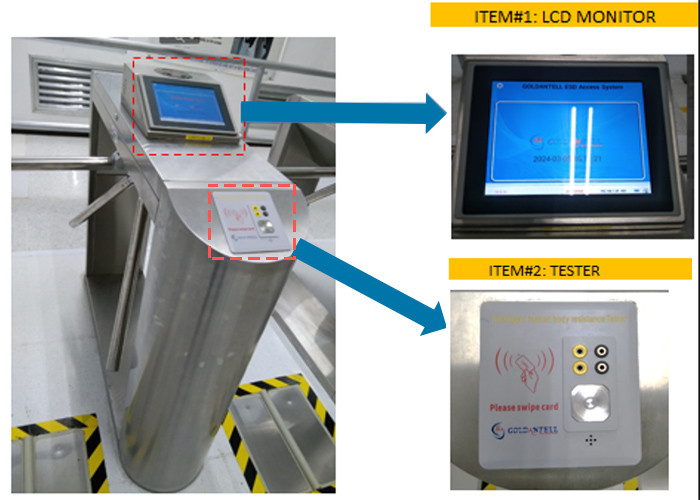

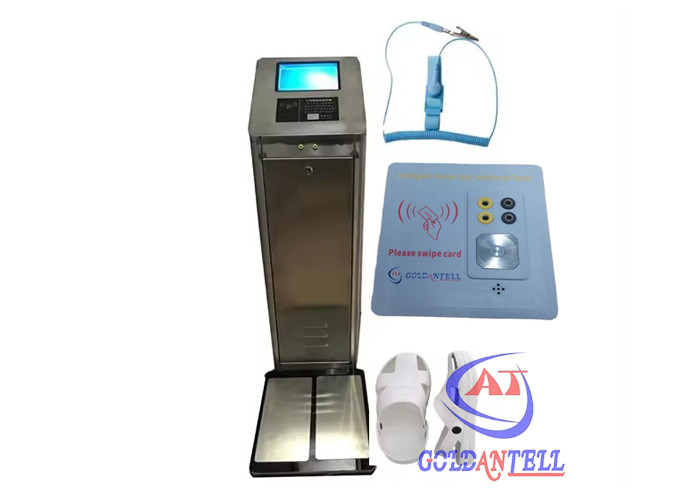

ESD tester system (which could be mount on turnstile gate) has 4 modes to choose from

① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
Pls note: The above modes do not need to be switched manually, all can be set in the software, reading card automatically recognizes the employee's authority, the company can set different test card permissions according to different test requirements.



FAQ Of Turnstile System

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.





Why Choose Our ESD System Turnstile Gates?
- Custom Solutions – Tailored to your security and design needs.
- 24/7 Support – Installation, maintenance, and troubleshooting.
- Competitive Pricing – Cost-effective without compromising quality.

Contact us today for a free consultation.
